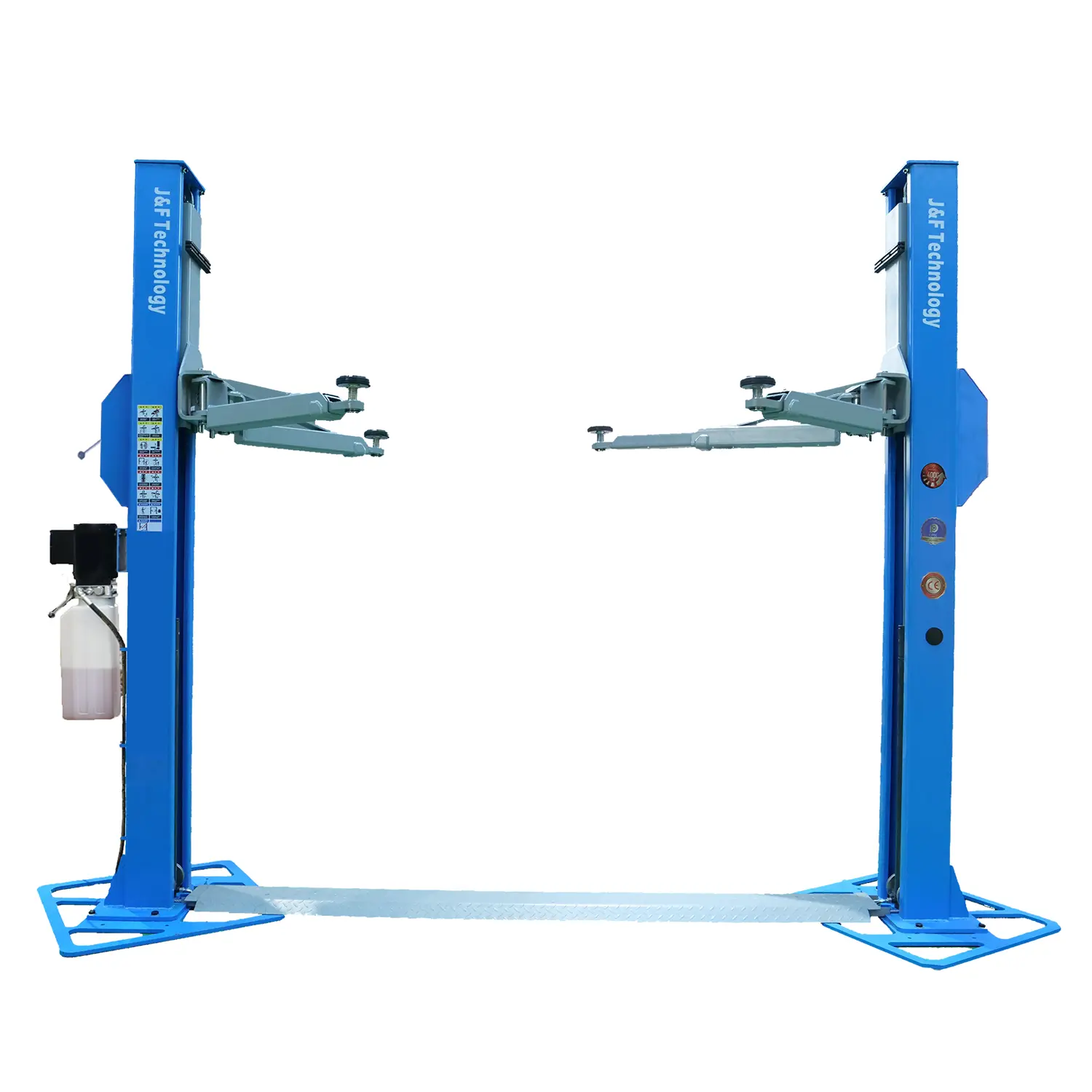

L-2-40S Chain Drive with Single Point Lock Release

· 4000KG lifting capacity
· 2000mm lifting height with standard truck adapter
· Double lock release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Base Plate type for low ceiling workshops and garages
· Durable cylinders in each column carry with anti-surge valves
· Screw-up lifting pads can maximize the lifting height
· 2-stage symmetric arms, more flexible
· The arm locks engage and disengage automatically
· Optional aluminum motor avoids overheating and ensures long service life
· Durable powder coating
· Standard door protection pads to prevent possible damage when open the door without caution
· Pre-fixed hydraulic pressure to prevent the overloading operation
· CE certificated

product details

Product advantages

Overall Dimension

Product features

MODEL NO.	L-2-40D	L-2-40S	L-2-40E
Lock Release System	Double Point	Single Point	Electric/Automatic
Lifting Capacity	4000kg/9000lb	4000kg/9000lb	4000kg/9000lb
Max Lifting Height	1800mm/70.9”	1800mm/70.9”	1800mm/70.9”
Min Height	100mm/3.9"	100mm/3.9"	100mm/3.9"
Drive Through	2530mm/100"	2530mm/100"	2530mm/100"
Lifting Time	50s	50s	50s
Overall Height	2720mm/107"	2720mm/107"	2720mm/107"
Electricity supply	Muttiple choice for 110/220/230/240/380/400/415V

L-2-40S (Chain Drive with Single Point Lock Release)

The L-2-40S is a highly efficient vehicle lift that combines practicality and performance, making it an excellent choice for busy workshops. Utilizing a robust chain drive system paired with a single-point lock release mechanism, this lift is designed to simplify operation while maintaining the safety and reliability required for professional use. Its user-friendly lock release system reduces setup time, allowing technicians to focus on their work without the need for complex adjustments. With a lifting capacity of 4000kg (9000lb), the L-2–40S is capable of accommodating a wide range of vehicles,

from compact cars to larger SUVs, making it versatile enough to meet diverse automotive maintenance needs. This model features a compact design with an overall height of 2720mm (107") and a width of 3240mm (127.5"), ensuring it fits comfortably into most standard workshop layouts. Despite its compact profile, the lift offers a generous drive-through width of 2530mm (100"), allowing vehicles to enter and exit with ease, even in confined spaces. The L-2–40S is equipped with adjustable arms to cater to various vehicle configurations. The arm reach ranges from 710mm to 1050mm at the front and 760mm to 1200mm at the rear, providing the flexibility needed to lift vehicles with unique chassis designs or asymmetrical weight distributions. This adaptability ensures secure lifting and stability, reducing risks during maintenance and repair operations. Powered by a reliable 2.2kW (3HP) motor, the L-2–40S offers quick and efficient lifting, achieving its maximum height in just 50 seconds. This rapid operation is particularly advantageous for high-volume workshops, where time is a critical factor. The durable chain drive system not only ensures smooth performance but also minimizes maintenance requirements, enhancing the lift's overall longevity and cost-effectiveness. The L-2–40S strikes a balance between performance, ease of use, and versatility. Its streamlined design, safety features, and operational efficiency make it an essential tool for automotive professionals who value reliability and productivity in their day-to-day operations.
