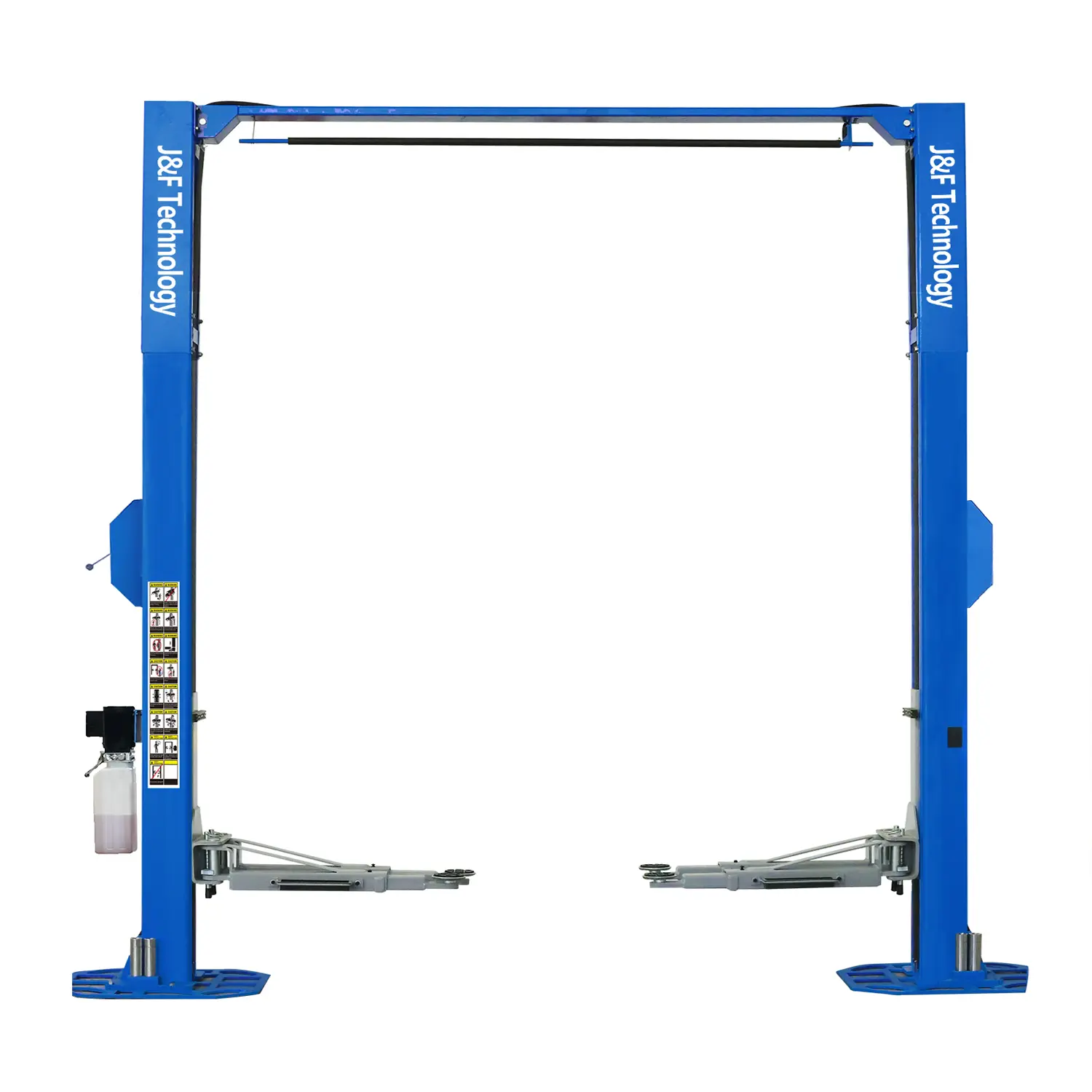

L-2C-40S Chain Drive with Single Point Lock Release

· 2000 mm lifting height with standard truck adapter
· Electric lock release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Only 40 seconds raising time with optional quick motor to shorten your service time
· Baseless design for easy movement of maintenance equipment under the raised vehicle
· Automatic shutdown of the power system upon contact between the vehicle roof and the rubber-protected overhead bar
· CE certificated by UK

product details

Product advantages

Optional Parts

Overall Dimension

Product features

MODEL NO.	L-2C-40C	L-2C-40S	L-2C-40E
Lock Release System	Double Point	Single Point	Electric/Automatic
Lifting Capacity	4000kg/9000lb	4000kg/9000lb	4000kg/9000lb
Max Lifting Height	1800mm/70.9"	1800mm/70.9"	1800mm/70.9"
Min Height	100mm/3.9"	100mm/3.9"	100mm/3.9"
Drive Through	2530mm/100"	2530mm/100"	2530mm/100"
Lifting Time	50s	50s	50s
Overall Height	3720mm/146.5"	3720mm/146.5"	3720mm/146.5"
Electricity supply	Muttiple choice for 110/220/230/240/380/400/415V

L-2C-40S (Chain Drive with Single Point Lock Release)

The L-2C-40S is an efficient and user-friendly vehicle lift, designed with a chain drive mechanism and a single-point lock release system to simplify operation. This combination makes the lifting process smoother and more intuitive, providing convenience for technicians in busy workshop environments. The single-point lock release ensures that users can easily engage and disengage the lift, reducing the manual effort required for operation. With a lifting capacity of 4000kg (9000lb), the L-2C– 40S can handle a wide range of vehicles, from compact cars to larger vans and light trucks. Its maximum lifting height of 1800mm (70.9") offers ample space for vehicle maintenance, allowing technicians to work underneath vehicles comfortably. This lift’s overall height of 3720mm (146.5") and width of 3240mm (127.5") ensure that it can accommodate a variety of vehicles while fitting into most standard workshop spaces. The drive-through width of 2530mm (100") makes vehicle access and exit easy, allowing vehicles to be moved in and out of the lift quickly and with minimal effort. The column width of 2800mm (110") provides ample space for a wide range of vehicle types, ensuring flexibility when working with different vehicles. This spacious design makes the lift adaptable to the needs of workshops that service a variety of car sizes. The adjustable arm reach, which matches the flexibility of the L-2C-40C, allows the L-2C–40S to accommodate various vehicle configurations. The arms can be adjusted to suit different vehicle frames, ensuring a secure lift every time. Whether working with smaller vehicles or larger ones, the adjustable arm reach offers versatility to handle diverse service needs. Powered by a 2.2kW (3HP) motor, the L-2C–40S delivers powerful performance, lifting vehicles to their maximum height in just 50 seconds. This quick lifting time minimizes downtime, making it an excellent choice for workshops looking to maximize efficiency without sacrificing reliability. With its blend of simplicity, performance, and versatility, the L-2C–40S is well-suited for modern automotive workshops seeking an effective and easy-to-use vehicle lifting solution.
