L-S-5 Underground Scissor Lift

·  3000 KG(7,000 LB). Capacity

·  1820mm(71-3/5”) max lifting height

·  Adjustable width

·  Open middle for easy access

·  Locking approach ramps

·  Air actuated locks

·  Zerk grease fittings at each hinge point

·  Separate Self-Contained Control Panel

    Product advantages

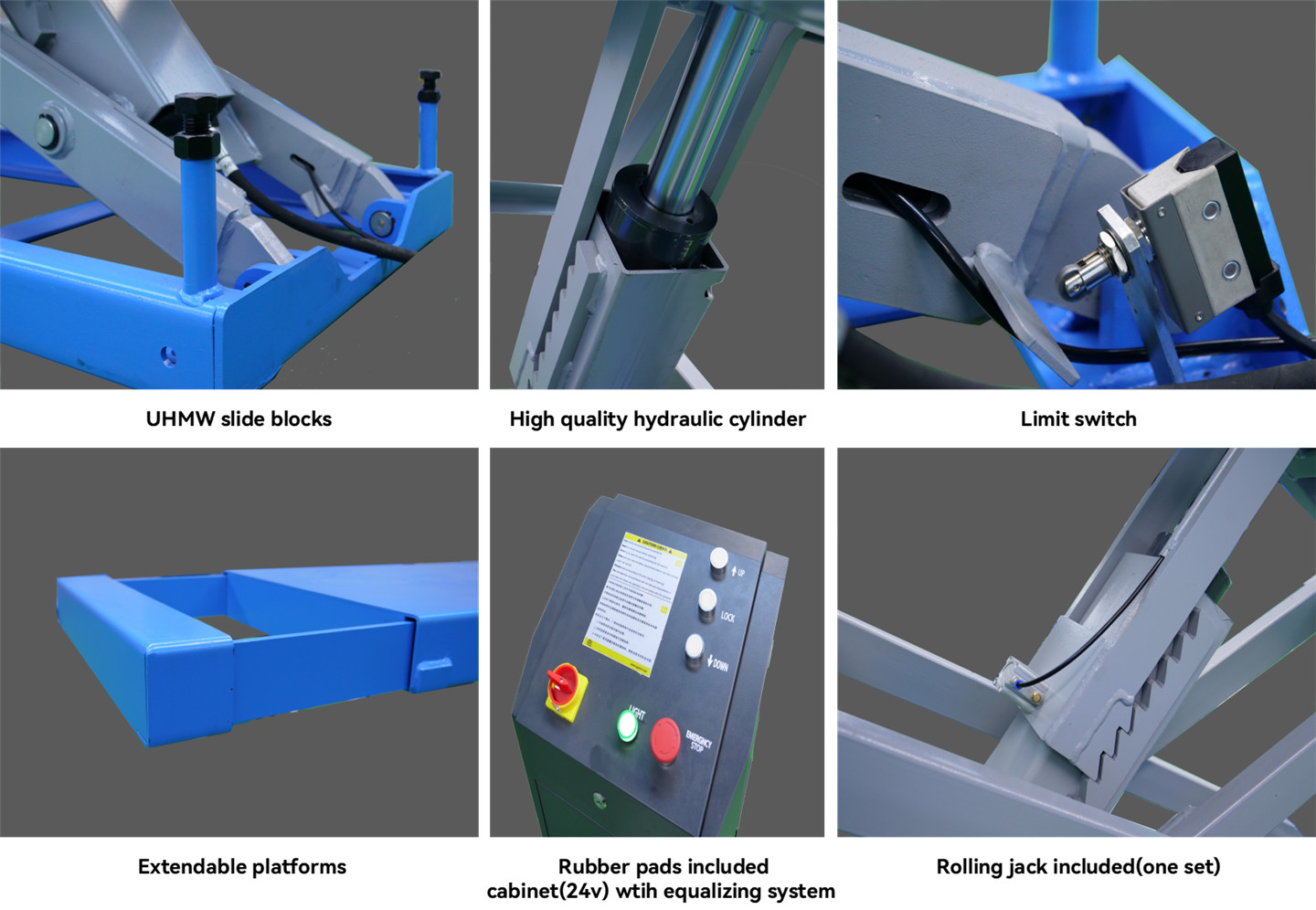

    • s5

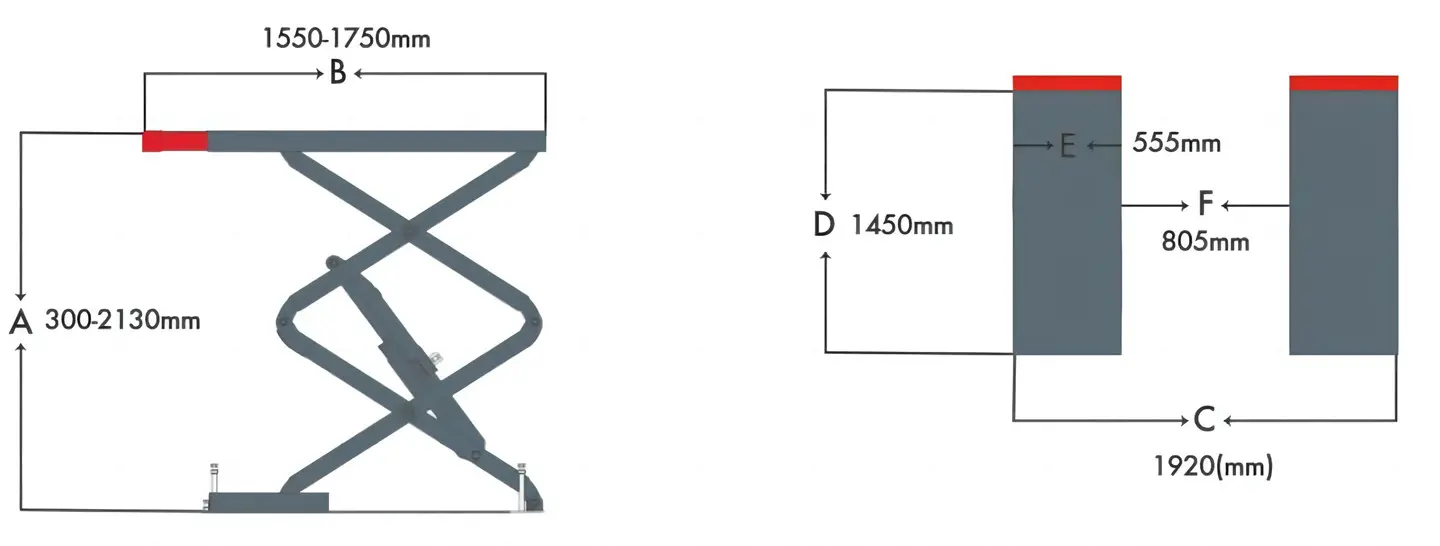

    Overall Dimension

    • L-S-5

    Product features

    MODEL NO. L-S-5
    Lifting Capacity 3Ton/7000lb
    Max Lifting Height 300-2130mm/11.8"-83.8"
    Length overall 1550-1750mm/61"-68.9"
    Width overall 1920mm/75.6"
    Runway Length 1450mm/57"
    Distance between runways 805mm/31.7"
    Lifting Time 50s
    Power Supply 380v 3ph 50hz 220v 1ph 50hz
    Muttiple choice for
    110/220/230/240/380/400/415V
