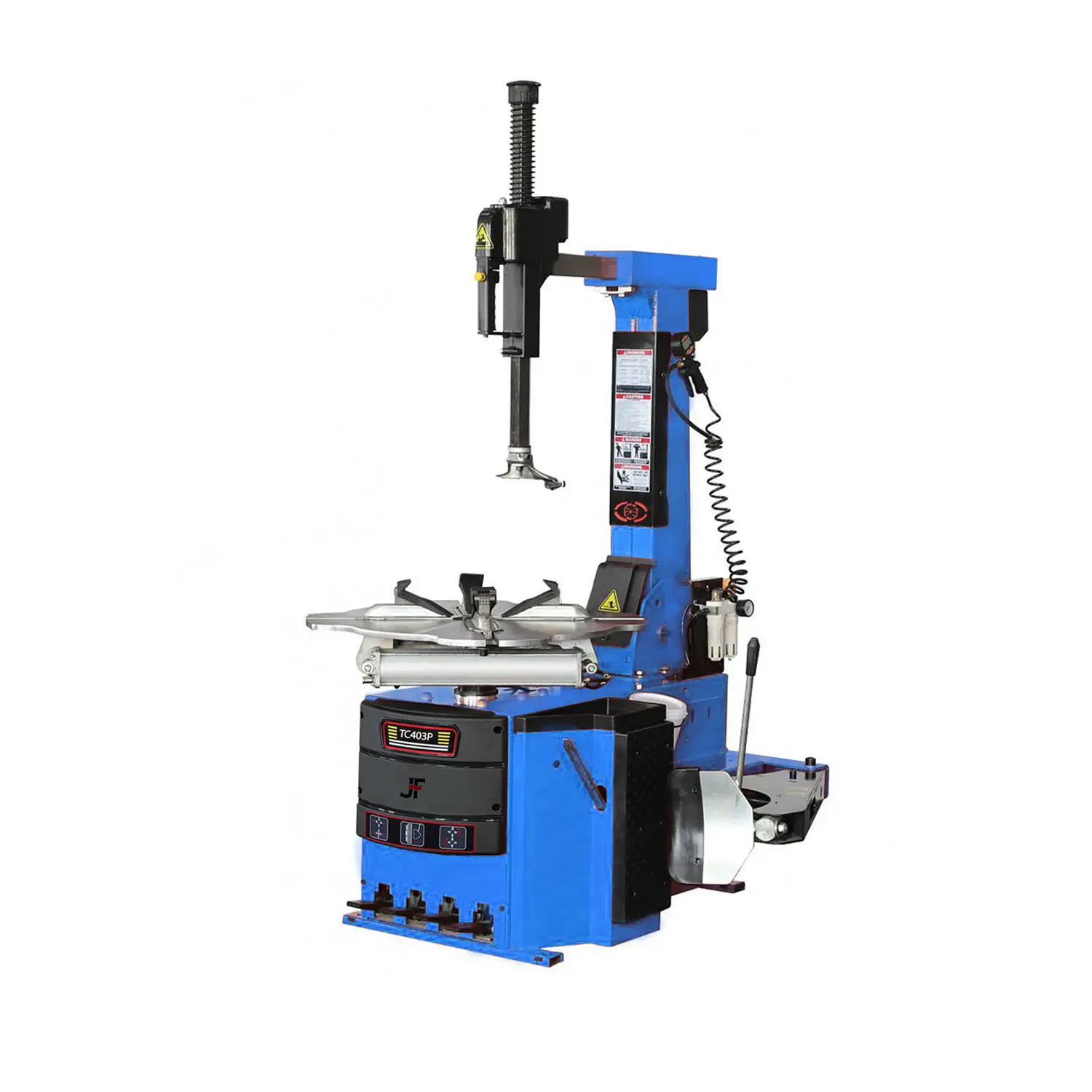

TC403P Rear-tilted type tire changer

TC403P Rear-tilted type tire changer

fully-automatic tyre changer, economical  and perfect for high-volume
tire shops where large,low-profile tires are a growing part of your business.
Designed with the operator's comfort and efficiency in mind.This tyre changer has many features including:
-Suitable for mountaing/demounting larger and wider tires
-High-performance on alloy wheels mountaing/demounting
-Clamping jaws and mounting/demounting head are made of high-quality steel
-Automatic push button up-down shift arm on the colum
-Simultaneous pneumatically horizontal/vertical arm locking
-Equipped with tilting colum
-Equipped with inflation gauge
-Equipped with bead breaker system extremelly versatile
-Equipped with adjustable internal/external wheel clamps
-Large turnable with high-quality cylinders and sealing parts
-Equipped with power assist bead roller
-Equipped with bead lifting disk
-Equipped with bead hold-down device

    Product Features

    TC403P

    Product features

    MODEL NO. TC403P
    Rim clamping from outside 12"-25"
    Rim clamping from inside 15"-28"
    Max. Wheel Width 3"-14"
    Max. Wheel Dia 1140mm
    Operating Pressure 8-10 bar
    Motor Power 0.75/1.1kw 110/220/380V
    • TC403P Rear-tilted type tire changer
